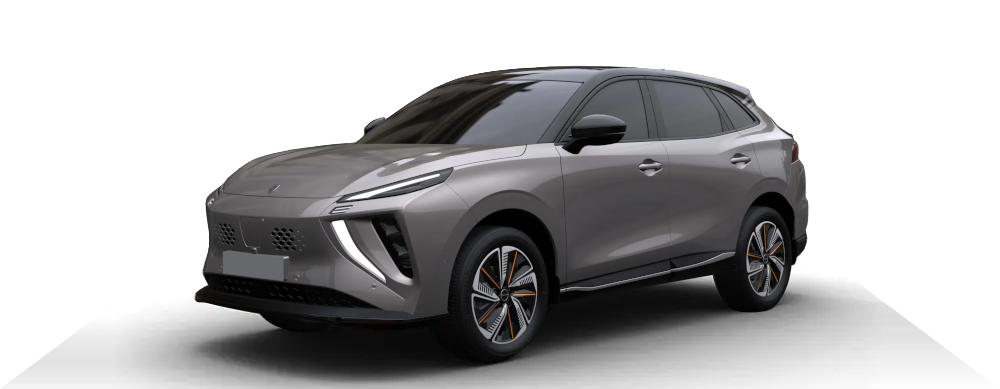

R5 FORTHING

Model

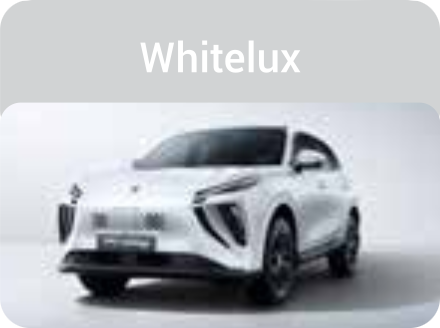

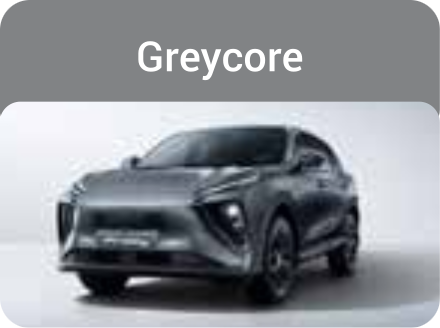

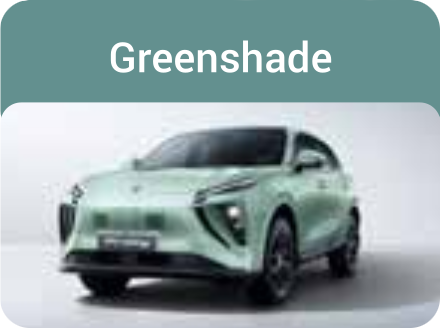

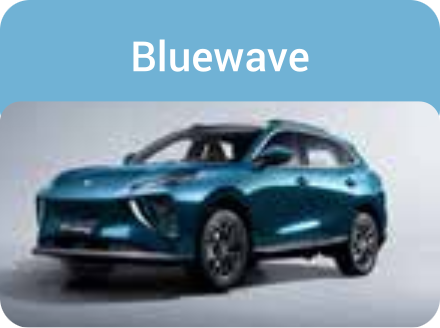

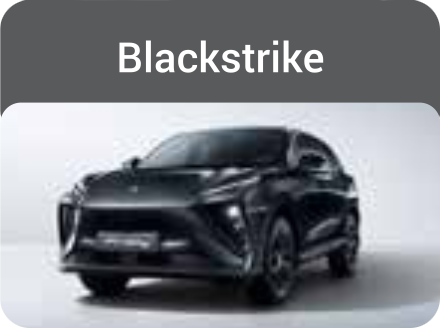

Colour

Clear

Est. Payment*

Due Today*

£195

*Non-refundable Order Fee.

RRP*

*Your Dealership sets the final price.

Top Speed

105mph*

Range*

R5 Forthing

Model

Colour

Clear

SUV / Saloon

MPV

Hatchback

Micro

Cars

Commercial

E-REV

Electric

"Available as a REEV Hybrid or Fully Electric Vehicle."

Sleek & Powerful

AEB Autonomous Emergency Braking

Advanced Driver Assistance System (ADAS)

Charge Point

Cutting Edge Rims

Electric Boot

Aerodynamic Design

Modern Grille and Headlights

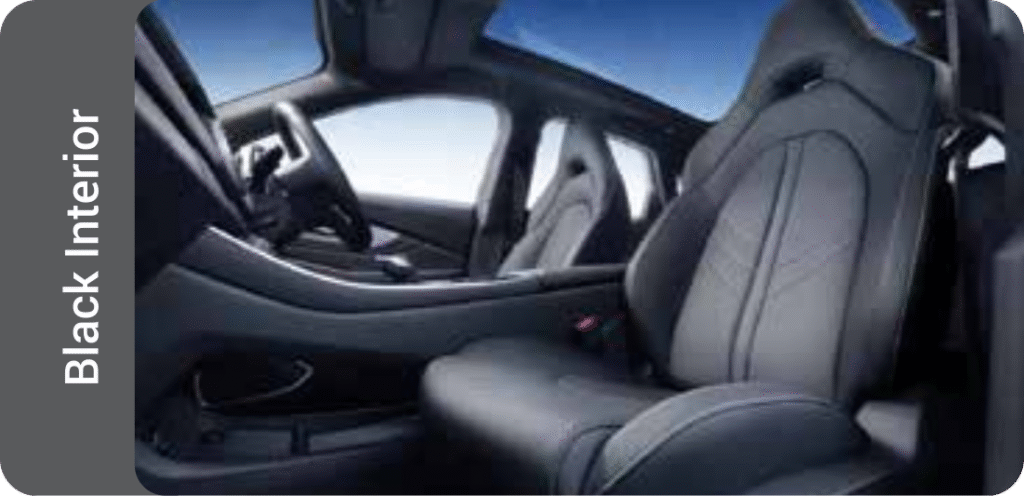

INTERIOR

Panoramic Sunroof

Magnificent Design

Advanced Air Con

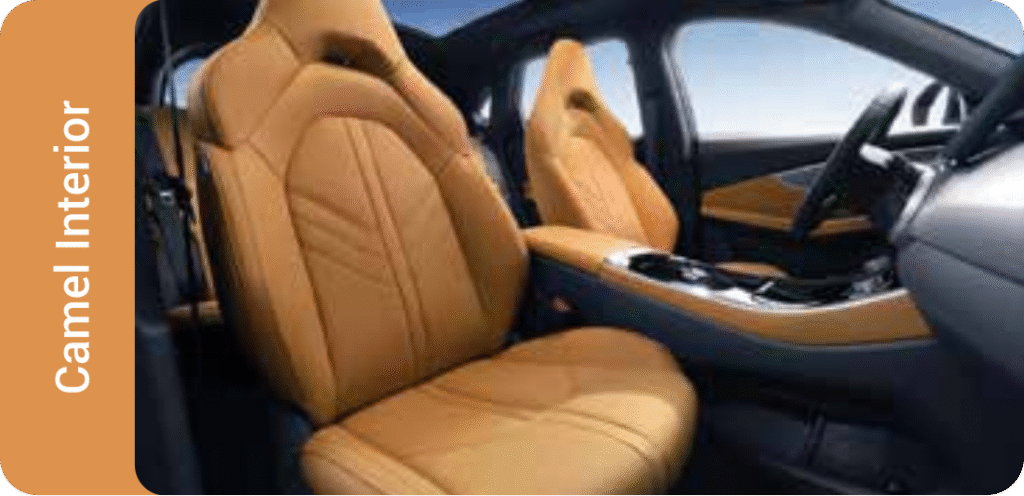

Ergonomic Seats with Leather & Ventilation Options

Smart Technology

Dual HD Screens: Infotainment + Digital Cluster

Large Boot Space

6-Airbags Protection System

SELECT VERSION

(The R5 has 2 variants)

REEV HYBRID

Mile Range

0-60mph (s)

Top Speed (mph)

Torque (N⋅m)

Power (kW)

Battery (kWh)

FULL SPEC

Parameters

Drivetrain	FWD
Length	4600 mm
Width	1860 mm
Height	1680 mm
Wheelbase	2715 mm
Ground Clearance	180 mm
Kerb Weight	1820 kg
Fuel Tank Capacity	43 litres
Gross Vehicle Weight	2195 kg
Engine Capacity	1.5L Naturally Aspirated Engine
Displacement	1498 cc
Cylinders	4
Compression Ratio	14.5+/- 0.3
Fuel Consumption (L)/100km (NEDC)	5.12
Top Speed	105 mph

Motor

Type	PMSM
Cooling Type	Liquid
Peak Power (hP/rpm)	204/5500
Rated Power (kW)	75
Maximum Motor Speed (rpm)	12000-16000
Maximum Torque (N.m/rpm)	340/1500-4000
Power Type	Range Extended EV
Brake Energy Recuperation System	YES
Multi-Stage Energy Recovery System	YES
Combined Range (CLTC) km	1150
Battery Material	Lithium Iron Phosphate
Cooling Type	Liquid
Heating Type	Liquid
Battery Heating Device	YES
Battery Rated Voltage (V)	307
Battery Capacity (kWh)	31.94
Camping Mode	YES
Acceleration 0-60 mph	10.9 seconds

Charging

Onboard Charger Power	Upto 7kW
Slow Charging Interface (AC)	YES
Fast Charging Interface (DC)	YES
Charging Interface with Lock	YES
Charging Pile Power > 120 kWh	x

Gearbox

Transmission Model	DCT
Transmission Type	Fixed Gear Ratio
Number of Gears	1
Electronic Gear Shifter	YES

Body

Body Canopy	Roof Sky Curtain
Number of Doors	5
Number of Seats	5
Steering	EPS

Base

LED Automatic Headlights	YES
Intelligent High Beam Control System	YES
Front Suspension	McPherson Independent + Stabilizer Bar
Rear Suspension	Multi Link Independent
Front Wheel Brakes	Ventilated Disc
Rear Wheel Brakes	Disc
Parking Brake	Electronic Parking
Booster Brake Type	Hydraulic Power Assisted Braking
Tyre Spec	235/55 R19

Multimedia

USB Port	YES
Stereo	YES
FM/AM/DAB	YES
Mobile Inter Connection (CarPlay and Android Auto)	YES
WIFI	YES
Bluetooth	YES
Instrument Cluster Panel 8″	YES
Central Display	14.6″
Number of Speakers	6

Seats

Integrated Sport Seats	YES
Leather Seats	YES
Driver Manual Adjustment	10-Way
Driver Seat Electric Memory	YES
Driver Seat Ventilation	YES
Driver Seat Massage	YES
Driver Seat Back Storage Bag	YES
Front Passenger Manual Adjustment 4-Way	x
Front Passenger Electrically Adjustment 4-Way	YES
Front Passenger Hooks at the Rear of the Seat	YES
Seat Heating	YES
Rear Seat Adjustable Headrest	YES
Rear Seat Backrest Adjustment (40/60 Split-Folding)	YES
Rear Seat Centre Armrest (With Cup Holder)	YES

Safety

Driver’s Seat Airbag	YES
Co-Pilot Airbag	YES
Front Head Air Curtain	YES
Rear Head Air Curtain	YES
Front Side Airbags	YES
Front Seat Belts with Pretensioners and Force Limiters	YES
Rear Seat Belts	YES
Not Fastened Seat Belt Alarm – Driver	YES
Not Fastened Seat Belt Alarm – Passenger	YES
Status Sensing Function – Passenger Seat	YES
Status Sensing Function – Rear Seats	YES
Not Fastened Seat Belt Alarm – Back Seats	YES
Seat Belts – Force Limiting Function	YES
Front Seat Belt High Adjuster	YES
Vehicle Controller Electronic Anti-Theft	YES
VSP (Sound of Pedestrians)	YES
Central Locking in The Car	YES
Automatic Locking	YES
Automatically Unlocks After A Collision	YES
Child Safety Door Locks	YES
ABS	YES
EBD/CBD	YES
Braking Priority	YES
HBA/EBA/BA	YES
(ASR/TCS/TRC)	YES
ESP	YES
Uphill Assistance	YES
Tire Pressure Monitoring	YES
ISO FIX Child Seat Fixtures	YES
High-Mounted Brake Light	YES
Steep Slope Descent	YES
Front Parking Sensor	YES
Rear Parking Sensor	YES
360-Degree Panoramic Camera	YES
Adaptive Cruise Control (ACC)	YES
Lane Departure Reminder (LDW)	YES
Lane Keep Assist	YES
Front Collision Warning (FCW)	YES
Emergency Braking System (EBS)	YES
Autonomous Emergency Braking (AEB)	YES
Traffic Sign Recognition System (TSR)	YES
Traffic Jam Assistant (TJA)	YES
Door Opening Warning (DOW)	YES
Rear Cross Traffic Alert (RCTA)	YES
Lane Change Assistant (LCA)	YES
Forward Collision Warning (RCW)	YES
Blind Spot Detection (BSD)	YES
Follow Me Home	YES
Steering Genuine Leather	YES
Multi-Function Steering Wheel	YES
Steering Wheel Sound Control	YES
Steering Wheel Instrument Controls	YES
Steering Wheel Bluetooth	YES
The Steering Wheel is Adjusted Up and Down	YES
Adjustable Steering Wheel	YES
Shift Knob Material	YES

Comfort

Electronic Shifting	YES
Mode Selection	YES
Trunk Opening Prompt	YES
Driving Modes	3 (ECO, Normal, Sports)
Terrain Selection Mode	YES
Filters
Automatic A/C	YES
Heat Pump Air Conditioner
Front Air Outlet	YES
Rear Seat Air Outlets	YES
Sun Visor in Front Row	With Mirror and LED Light
Panoramic Skylight	Electric
Windows Automatic Closing When Raining	YES

Convenience

Keys	YES
One Touch Start System	YES
Keyless Entering	YES
Daytime Running Lights	YES
Front Boneless Wipers	YES
Front Induction Wipers	YES
Sensitivity Adjustable Wiper Lever	YES
Rear Wiper	YES
Rear Window Heating Wire	YES
Electric Adjustment of Rearview Mirror	YES
Rear Mirror Heating	YES
Rear Mirror Automatic Folding	YES
Interior Rearview Mirror Anti-Glare	YES
Rear Mirror Position Memory + Reverse Tilt	YES
Front Power Windows	YES
Rear Power Windows	YES
Anti-Pinch Function on the Windows	YES
One-Click Window Up/Down	YES
Remote Window Opening	YES
Central Storage Box	YES
Installation Port of Instrument Panel Mobile Phone Bracket	YES
Instrument Panel Hook	YES
5V USB Charging Interface	YES
12V Power Supply	YES
Wireless Charging for Mobile Phone	YES
Electric Tailgate	YES
Welcome Function	YES

FULLY ELECTRIC
